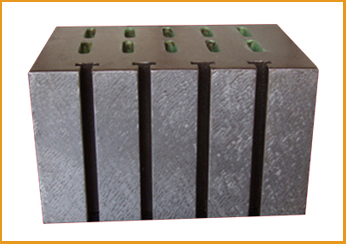

Box Angle Plate
We are manufacturing and servicing of Cast Iron Box Angle Plate to Grade 1and Grade 2 accuracy as per IS:2632.These are basically used for clamping work for tooling, shaping and milling, wherein, job can be fixed on one of its faces and are rotated in 5 positions without the need of repositioning or disturbing accuracy.
We are manufacturing and servicing of Cast Iron Box Angle Plate to Grade 1and Grade 2 accuracy as per IS:2632.These are basically used for clamping work for tooling, shaping and milling, wherein, job can be fixed on one of its faces and are rotated in 5 positions without the need of repositioning or disturbing accuracy.
| Sizes in mm | Grade of accuracy | Flatness of working face Microns | Squareness of working faces over dim. 'H' Microns | Parallelism of opposite faces Microns |
| L X B X H | ||||
| 250 X 150 X 175 | 1 | 8 | 15 | 18 |
| 2 | 38 | 75 | 88 | |
| 350 X 200 X 250 | 1 | 8 | 18 | 20 |
| 2 | 38 | 75 | 88 | |
| 450 X 300 X 350 | 1 | 10 | 18 | 20 |
| 2 | 50 | 100 | 113 |
