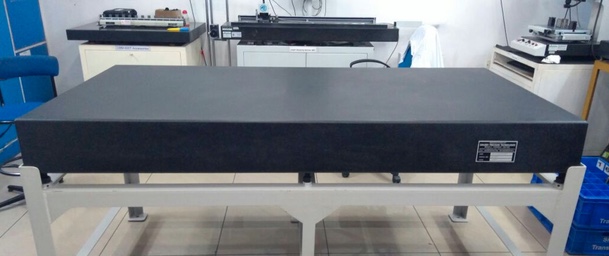

Granite Surface Plates

We are into manufacturing, supplying and servicing of Granite Surface Plates to Grade '0' accuracy as per IS 7327-2003. These plates are preferred for the inspection and layout making purposes. These surface plate make an ideal base for mounting sophisticated mechanical, electronic and optical gauging systems

We provide fabricated stand with adjustable leveling screws on request by our clients. The overall working height of surface plates with stand and leveling screw will be 900 MM (approx) from floor level.



Size mm	Thickness mm	Flatness Tolerance in microns
		DIN 876			IS 7327 - 2003
		Grade			Grade
		00	0	1	0	1	2	3
400X400	70	3	6	14	4.5	9	17	34
630X400	80	3	7	16	5	10	21	42
630X630	80	3	7	16	5	10	21	42
1000X630	150	4	8	20	6	12	24	49
1200X800	150	4	8	20	7	14	28	56
1000X1000	150	4	8	20	7	14	28	56
1600X1000	200	5	10	26	8	16	33	66
2000X1000	200	6	12	30	9.5	19	28	75
