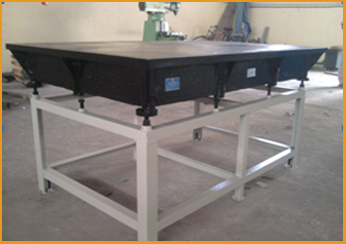

Cast Iron Surface Plates
We are manufacturing and servicing of Cast Iron Surface Plates to Grade 1 accuracy as per IS 2285-2003.Cast Iron Surface Plates used for layout, tooling, work holding, assembly testing & inspection.
| Flatness Tolerance in microns (IS 2285 – 2003) | |||
| Size mm | Grade 1 | Grade 2 | Grade 3 |
| 400X400 | 9 | 17 | 34 |
| 630X400 | 10 | 21 | 42 |
| 630X630 | 10 | 21 | 42 |
| 1000X630 | 12 | 24 | 49 |
| 1200X800 | 14 | 28 | 56 |
| 1000X1000 | 14 | 28 | 56 |
| 1600X1000 | 16 | 33 | 66 |
| 2000X1000 | 19 | 38 | 75 |
